4-Channel 0 to 10
V Analog Input Terminal
The KL3064 analog input terminal processes signals within the range from 0 V to 10 V. The
voltage is digitised with a resolution of 12 bits and is transported in an electrically
isolated fashion to the higher-level control system. The input channels of one bus

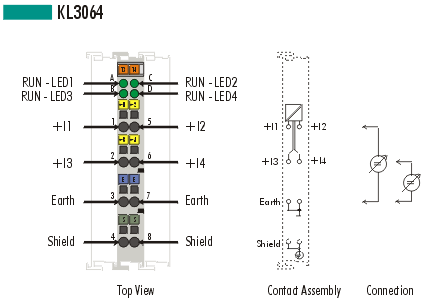

terminal possess a common earth potential, the reference earth. The RUN LEDs indicates
operability and the logical connection to the bus coupler. The KL3064 contains four
channels in one housing.
|
Technical data |
KL3064 |
|
Number of inputs |
4 (single ended) |
|
Power supply |
via the K-Bus |
|
Signal voltage |
0 V ... +10 V |
|
Internal resistance |
> 130 kW |
|
Resolution |
12 Bit (for 0 ... 10 V range: 11 bits resolution) |
| Conversion time | app. 4 ms |
|
Measuring error (total measuring range) |
< ± 0.3% (of the upper range value) |
| Electrical isolation | 500 Vrms (K-Bus / signal voltage) |
| Current consumption from K-Bus | 65 mA typ. |
| Bit width in the process image | I: 4 x 16 bits (4 x 8 bits control/status optional) |
|
Configuration |
no address or configuration settings |
|
Weight approx. |
80 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
