I/O-Modules
Fieldbus Terminals
2-Channel PT100 (RTD)
Input Terminal

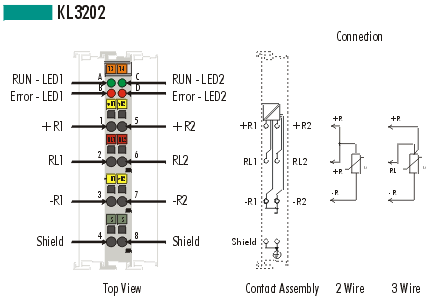

The KL3202 analog input terminal permits direct connection of two resistance sensors. The
bus terminal circuit is capable of operating 2 and 3-wire sensors. Linearisation of the
entire temperature range is realised by a microprocessor. The temperature range can be
chosen freely. The standard setting of the bus terminal is 0.1°C resolution in the
temperature range of the PT100 sensor, 3-wire connection. The RUN LEDs indicates
operability and the logical connection to the bus coupler. The Error LEDs indicates sensor
malfunctions (i.e. wire breakage).
|
Technical data |
KL3202 |
|
Number of inputs |
2 please notice page 72 |
|
Power supply |
via the K-Bus |
|
Sensor types |
PT100,
PT200, PT500, PT1000, Ni100, resistance measurement |
|
Connection |
2, 3-wire, default: 3-wire |
|
Temperature range |
-200°C ... +850°C (PT sensors), -60°C ... +250°C (Ni sensors) |
|
Resolution |
0.1°C per digit |
| Conversion time | app. 250 ms |
|
Measuring error (total measuring range) |
< ± 1°C |
| Bit width in the process image | I: 2 x 16 bits data (2 x 8 bits control/status) |
| Current consumption from K-Bus | 60 mA typ. |
|
Configuration |
no address setting, configuration via the bus coupler or the controller |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
