I/O-Modules
Fieldbus Terminals
2-Channel - 10/0 to 10
V Analog Output Terminal

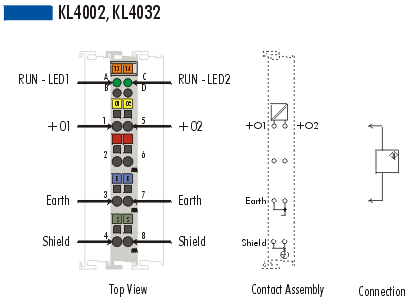

The KL4002 and KL4032 analog output terminals generate signals within the range from -10 V
to +10 V or 0 V to 10 V. The voltage is transported to the process level in an
electrically isolated fashion with a resolution of 12 bits. The output channels of one bus
terminal possess a common earth potential. The RUN LEDs indicate operational status and
the logical connection to the bus coupler.
|
Technical data |
KL4002 | KL4032 |
|
Number of inputs |
2 | |
|
Power supply |
via the K-Bus | |
|
Signal voltage |
0 ... 10 V | -10 V ... +10 V |
|
Load |
> 5 kW | |
|
Accuracy |
± 0.5 LSB linearity error, ± 0.5 LSB offset error | |
|
Resolution |
12 bits | |
| Conversion time | app. 1.5 ms | |
| Electrical isolation | 500 Vrms (K-Bus / signal voltage) | |
| Current consumption from K-Bus | 75 mA typ. | |
| Bit width in the process image | O: 2 x 16 bits data (2 x 8 bits control/status) | |
|
Configuration |
no address or configuration settings | |
| Weight approx. | 85 g | |
|
Operating temperature |
0°C ... +55°C | |
|
Storage temperature |
-25°C ... +85°C | |
|
Relative humidity |
95%, no condensation | |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 | |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 | |
|
Installation position |
any | |
|
Type of protection |
IP20 | |
