I/O-Modules
Fieldbus Terminals
2-Channel 0/4 to 20 mA Analog Output Terminal

Product Description

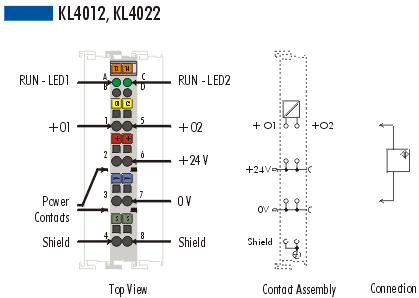

The KL4012 and KL4022 analog output terminals generate analog output signals within the
range from 0 / 4 to 20 mA. The current is transported to the process level in an
electrically isolated fashion with a resolution of 12 bits. The output channels of one bus
terminal possess a common earth potential with the 24 V DC power supply. The output stages
are powered by the 24 V power supply. The RUN LEDs indicate operational status and the
logical connection to the bus coupler.

Technical data	KL4012	KL4022
Number of inputs	2
Power supply	24 V DC via the Power contacts
Signal voltage	0 ... 20 mA	4 ... 20 mA
Load	< 500 W
Accuracy	± 0.5 LSB linearity error, ± 0.5 LSB offset error
Resolution	12 bits
Conversion time	app. 1.5 ms
Electrical isolation	500 Vrms (K-Bus / signal voltage)
Current consumption from K-Bus	60 mA typ.
Bit width in the process image	O: 2 x 16 bits data (2 x 8 bits control/status optional)
Configuration	no address or configuration settings
Weight approx.	80 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
