I/O-Modules
Fieldbus Terminals
2-Channel - 10/0 to 10
V Analog Output Terminal

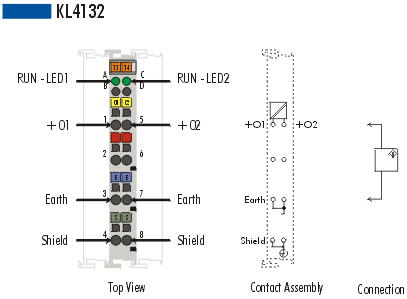

The KL4132 analog output terminal generates signals within the range from -10 V to +10 V
or 0 V to 10 V. The voltage is transported to the process level in an electrically
isolated fashion with a resolution of 15 bits. The output channels of one bus terminal
possess a common earth potential. The RUN LEDs indicate operational status and the logical
connection to the bus coupler.
|
Technical data |
KL4002 |
|
Number of inputs |
2 |
|
Power supply |
via the K-Bus |
|
Signal voltage |
-10 V ... +10 V |
|
Load |
> 5 kW |
|
Accuracy |
< ± 0.1% (of the upper range value) |
|
Resolution |
16 bits |
| Conversion time | app. 1.5 ms |
| Electrical isolation | 500 Vrms (K-Bus / signal voltage) |
| Current consumption from K-Bus | 75 mA typ. |
| Bit width in the process image | O: 2 x 16 bits data (2 x 8 bits control/status) |
|
Configuration |
no address or configuration settings |
| Weight approx. | 85 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
