Serial Port RS232C

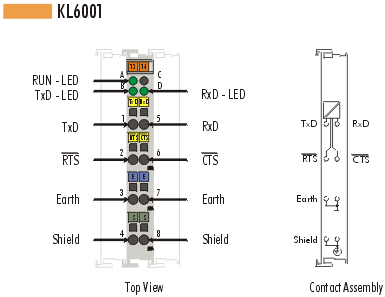

Product Description

The KL6001 serial interface enables the connection of units with a RS232 interface. This
interface operates in conformity with the CCITT V.28 / DIN 66 259-1 standards. The unit
connected to the KL6001 terminal communicates with the controller via the bus coupler. The
active communication channel operates independently of the higher-level bus system in full
duplex mode at a rate of up to 19.200 baud. The RS232 interface guarantees a high degree
of insusceptibility to faults thanks to electrically isolated signals.


Technical data

 KL6001

Data transfer channel

 2 (1/1), TxD and RxD, full duplex

Data transfer rate

 9600 Baud (8N1) default, (max. 19200 Baud)

Bit distortion

 < 3%

Connection

 Spring force terminals

RS232-cable length

 max. 15 m

LOW signal voltage

 -18 V ... -3 V
HIGH signal voltage 3 V ... 18 V
Power supply via K-Bus
Electrical isolation 500 Vrms (K-Bus / signal voltage)
Data buffer 128 byte receive buffer, 16 byte transmit buffer

Bit width in the Process image

 I/O: 3 x 8 bits user data, 1 x 8 bits control/status (up to 5 x 8 bits user data possible)
Configuration no address setting, configuration setting via the bus coupler or control system

Current consumption from K-Bus

 55 mA

Operating temperature

 0°C ... +55°C

Storage temperature

 -25°C ... +85°C

Relative humidity

 95%, no condensation

Vibrations/Shock resistance

 conforms to IEC 68-2-6 / IEC 68-2-27

EMC resistance burst / ESD

 conforms to EN 50082 (ESD, Burst) / EN 50081

Installation position

 any

Type of protection

 IP20
