Serial Port TTY, 20 mA Current Loop

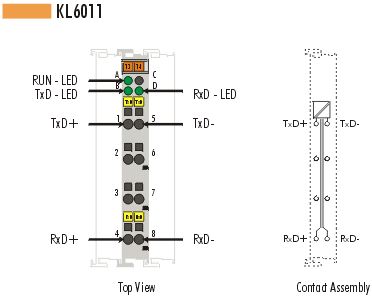

Product Description

 The KL6011 serial interface enables the connection of units with a 20 mA current
interface. The interface operates in passive mode. The unit connected to the KL6011
terminal communicates with the controller via the bus coupler. The active communication
channel operates independently of the higher-level bus system in full duplex mode at a
rate of up to 19,200 baud. The current interface (TTY) guarantees a high degree of
insusceptibility to faults thanks to electrically isolated signals with an integrated
current.


Technical data

 KL6011

Data transfer channels

 2 (1/1), TxD and RxD, full duplex

Data transfer rate

 9600 Baud (8N1) default, (max. 19200 Baud)

Bit transfer

 2 x 20 mA

Load

 < 500 W

Data transfer link

 max. 1000 m twisted pair
Power supply via K-Bus

Current consumption from K-Bus

 55 mA
Electrical isolation 500 Vrms (K-Bus / signal voltage)
Data buffer 128 byte receive buffer, 16 byte transmit buffer

Bit width in the Process image

 I/O: 3 x 8 bits user data, 1 x 8 bits control/status (up to 5 x 8 bits user data possible)
Configuration no address setting, configuration setting via the bus coupler or control system
Weight approx. 60 g

Operating temperature

 0°C ... +55°C

Storage temperature

 -25°C ... +85°C

Relative humidity

 95%, no condensation

Vibrations/Shock resistance

 conforms to IEC 68-2-6 / IEC 68-2-27

EMC resistance burst / ESD

 conforms to EN 50082 (ESD, Burst) / EN 50081

Installation position

 any

Type of protection

 IP20
