Serial Port TTY, 20 mA Current Loop

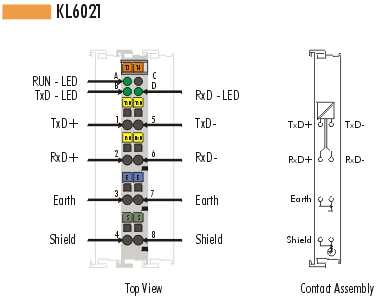

Product Description

The KL6021 serial interface enables the connection of units with an RS422 or RS485
interface. The unit connected to the KL6021 terminal communicates with the controller via
the bus coupler. The active communication channel operates independently of the
higher-level bus system in half duplex mode at a rate of up to 19.200 baud. The RS485
differential signal transfer guarantees a high degree of insusceptibility to faults thanks
to electrically isolated signals.

Technical data	KL6021
Data transfer channels	TxD and RxD, half duplex
Data transfer rate	9600 Baud (8N1) default, (max. 19200 Baud)
Bit transfer	with differential signal
Line impedance	120 W
Data transfer link	max. 1000 m twisted pair
Power supply	via K-Bus
Current consumption from K-Bus	65 mA typ.
Electrical isolation	500 Vrms (K-Bus / signal voltage)
Data buffer	128 byte receive buffer, 16 byte transmit buffer
Bit width in the Process image	I/O: 3 x 8 bits user data, 1 x 8 bits control/status (up to 5 x 8 bits user data possible)
Configuration	no address setting, configuration setting via the bus coupler or control system
Weight approx.	60 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
