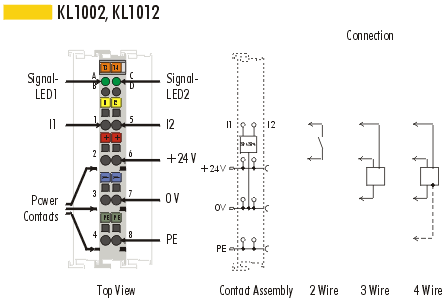

2-Channel 24 V DC Digital Input Terminal

Product Description

The KL1002 and KL1012 digital input terminals acquire the binary control signals from the process level and transport them as electrically isolated signals to the higher-level control system. The KL1002 and KL1012 have different filter delays. The bus terminals contain two channels each, which indicate their signal states with LEDs

Technical data	KL1002	KL1012
Number of inputs	2
Rated load voltage	24 V DC (20 V ... 29 V)
'0' signal voltage	-3 V ... 5 V
'1' signal voltage	15 V ... 30 V
Input filter	3.0 ms	0.2 ms
Input current	5 mA typ.
Current consumption from K-Bus	3 mA typ.
Electrical isolation	500 Vrms (K-Bus / field voltage)
Bit width in the process image	2 I
Configuration	no address or configuration settings
Weight approx.	50 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
