2-Channel 48 V DC Digital Input Terminal

Product Description

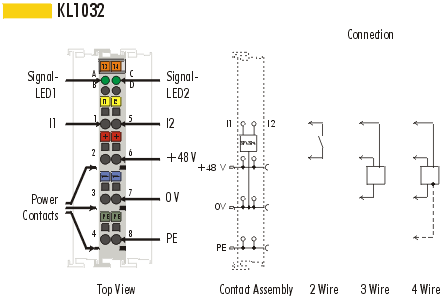

 The KL1032 digital input terminal acquires the binary control signals from the process level and transports them as electrically isolated signals to the higher-level control system. The bus terminal contains two channels, which indicate their signal states with LEDs.



Technical data

 KL1032

Number of inputs

 2

Rated load voltage

 48 V DC (40 V ... 58 V)

'0' signal voltage

 -6 V ... 10 V

'1' signal voltage

 34 V ... 60 V

Input filter

 3.0 ms

Input current

 3.5 mA typ.

Current consumption from K-Bus

 3 mA typ.

Electrical isolation

 500 Vrms (K-Bus / field voltage)

Bit width in the process image

 2 I

Configuration

 no address or configuration settings

Weight approx.

 50 g

Operating temperature

 0°C ... +55°C

Storage temperature

 -25°C ... +85°C

Relative humidity

 95%, no condensation

Vibrations/Shock resistance

 conforms to IEC 68-2-6 / IEC 68-2-27

EMC resistance burst / ESD

 conforms to EN 50082 (ESD, Burst) / EN 50081

Installation position

 any

Type of protection

 IP20
