2-Channel 24 V DC Digital Input Terminal

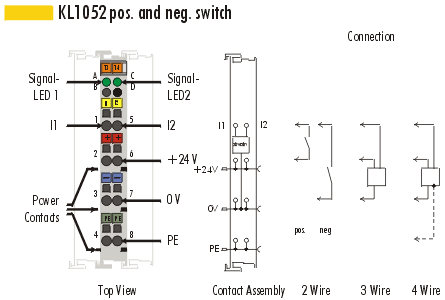

Product Description

The KL1052 digital input terminal acquires the binary control signals from the process
level and transports them as electrically isolated signals to the higher-level control
system. Sensors that are positive or negative (0 V) switching can be connected to the
KL1052 variant. The bus terminal contains two channels, which indicate their signal states
with LEDs.

Technical data

KL1052

Number of inputs

2

Rated load voltage

24 V DC (20 V ... 29 V)

Signal ´0´

7,1 V ... 17,9 V

Signal ´1´

0 V ... 7 V and 18 V ... 30 V

Input filter

3.0 ms

Input current

3 mA typ.

Current consumption from K-Bus

8 mA typ.

Electrical isolation

500 Vrms (K-Bus / field voltage)

Bit width in the process image

2 I

Configuration

no address or configuration settings

Weight approx.

50 g

Operating temperature

0°C ... +55°C

Storage temperature

-25°C ... +85°C

Relative humidity

95%, no condensation

Vibrations/Shock resistance

conforms to IEC 68-2-6 / IEC 68-2-27

EMC resistance burst / ESD

conforms to EN 50082 (ESD, Burst) / EN 50081

Installation position

any

Type of protection

IP20
