4-Channel 24 V DC Digital Input Terminal
Product Description

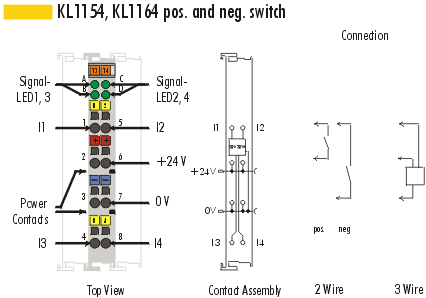

The KL1154 and KL1164 digital input terminals acquire the binary control signals from the
process level and transport them as electrically isolated signals to the higher-level
control-system. Sensors that are positive or negative 0 V (earth) switching can be
connected to the KL1154 and KL1164 variants. The KL1154 and KL1164 have different filter
delays. The bus terminals contain four channels each, which indicate their signal status
with LEDS.

Technical data

 KL1154 KL1164

Number of inputs

 4

Rated load voltage

 24 V DC (20 V ... 29 V)

Signal ´0´

 7.1 V ... 17.9 V

Signal ´1´

 15 V ... 30 V

Input filter

 3.0 ms 0.2 ms

Input current

 5 mA typ.

Current consumption from K-Bus

 8 mA typ.

Electrical isolation

 500 Vrms (K-Bus / field voltage)

Bit width in the process image

 4 I

Configuration

 no address or configuration settings

Weight approx.

 55 g

Operating temperature

 0°C ... +55°C

Storage temperature

 -25°C ... +85°C

Relative humidity

 95%, no condensation

Vibrations/Shock resistance

 conforms to IEC 68-2-6 / IEC 68-2-27

EMC resistance burst / ESD

 conforms to EN 50082 (ESD, Burst) / EN 50081

Installation position

 any

Type of protection

 IP20
