I/O-Modules
Fieldbus Terminals

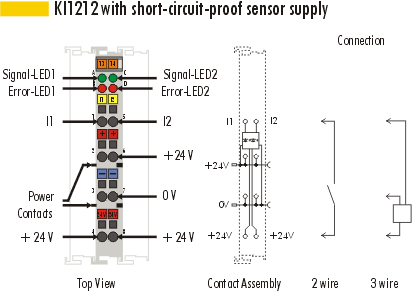

2-Channel 24 V DC
Digital Input Terminal
The KL1212 digital input terminal acquires the binary control signals from the process
level and transports them as electrically isolated signals to the higher-level control
system. The KL1212 variant creates a 24 V DC short-circuit proof supply voltage for
sensors. The sensor outputs can be switched on and off by the control system. A
short-circuit or wire break in the sensor supply is recognized and the terminal status is
passed on to the control system via the K-Bus. The bus terminal contains two channels,
which indicate their signal status and errors with LEDS.
The KL1202 is further available.
|
Technical data |
KL1212 | |||||||||
|
Number of inputs |
2 | |||||||||
|
Rated load voltage |
24 V DC (20 V ... 29 V) | |||||||||
|
Signal ´0´ |
-3 V ... 5 V | |||||||||
|
Signal ´1´ |
15 V ... 30 V | |||||||||
|
Input filter |
3.0 ms | |||||||||
|
Input current |
5 mA typ. | |||||||||
|
Current consumption from K-Bus |
8 mA typ. | |||||||||
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) | |||||||||
|
Bit width in the process image |
I/O: 4 I (2 Error bit / 2 Signal bit); 4 O (2 Sensor supply) | |||||||||
| Mapping of I/O bits | I: | Bit 3 | Bit 2 | Bit 1 | Bit 0 | O: | Bit 1 | Bit 0 | ||
| Err. 2 | Err. 1 | In2 | In1 | Out2 | Out1 | |||||
|
Configuration |
no address or configuration settings | |||||||||
|
Weight approx. |
50 g | |||||||||
|
Operating temperature |
0°C ... +55°C | |||||||||
|
Storage temperature |
-25°C ... +85°C | |||||||||
|
Relative humidity |
95%, no condensation | |||||||||
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 | |||||||||
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 | |||||||||
|
Installation position |
any | |||||||||
|
Type of protection |
IP20 | |||||||||
