2-Channel 120/230 V AC Digital Input Terminal

Product Description

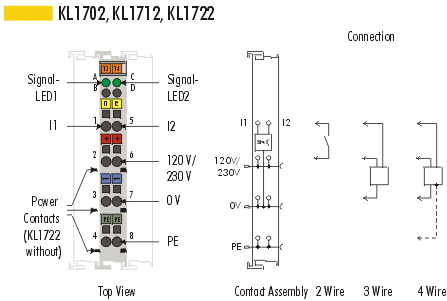

The KL1702, KL1712 and KL1722 digital input terminals acquire the binary control signals
from the processing level and transport them as electrically isolated signals to the
higher-level control system. Direct connection of 120 V / 230 V AC actuators is possible.
The bus terminals contain two channels each, which indicate their signal status by LEDs.
The KL1722 variant has no power contacts. In this way individual potential groups can be
constructed.

Technical data	KL1702	KL1712	KL1722 (no power contacts)
Number of inputs	2
Rated load voltage	120 V AC / 230 V AC	120 V AC / DC	120 V AC / 230 V AC
'0' signal voltage	0 V ... 40 V	0 V ... 40 V	0 V ... 40 V
'1' signal voltage	79 V ... 260 V	80 V ... 140 V	79 V ... 260 V
Input current	3 mA typ.
Switching time approx.	10 ms
Electrical isolation	500 Vrms (K-Bus / field voltage)
Current consumption from K-Bus	3 mA typ.
Bit width in the process image	2 I
Configuration	no address or configuration settings
Weight approx.	60 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
