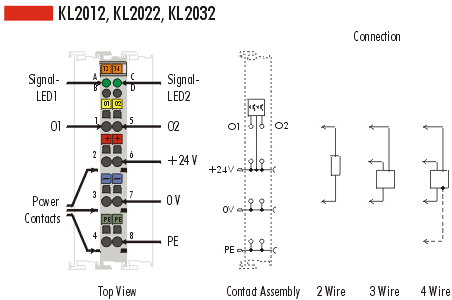

2-Channel 24 V DC Digital Output Terminal

Product Description

The KL2012, KL2022 and KL2032 digital output terminals switch the binary control signals
of the control system to the process level in an electrically isolated fashion. The KL2012
and KL2022 variants process different load current amounts with outputs that are resistant
to overloads and short-circuits. The KL2032 bus terminal is protected against polarity
swapping. The bus terminals contain two channels each, which indicate their signal states
with LEDs.

Technical data	KL2012	KL2022	KL2032
Number of outputs	2
Rated load voltage	24 V DC (20 V ... 29 V)
Load type	resistive, inductive
Max. output current	0.5 A	2.0 A	0.5 A
(per channel)	(short-circuit- protected)	(short-circuit- protected)	(short-circuit- protected)
Max. short-circuit current	0.6...1.0 A	8...10 A	0.7...1.7 A
Breaking energy	< 150 mJ / channel	< 1.7 J / channel	---
Reverse voltage protection	No	No	Yes
Electrical isolation	500 Vrms (K-Bus / field voltage)
Leakage current	15 mA typ.	20 mA typ.	20 mA typ.
Current consumption from K-Bus	5 mA typ.
Bit width in the process image	2 O
Configuration	no address or configuration setting
Weight approx.	55 g	55 g	55 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
