I/O-Modules
Fieldbus Terminals
4-Channel 24 V DC
Digital Output Terminal

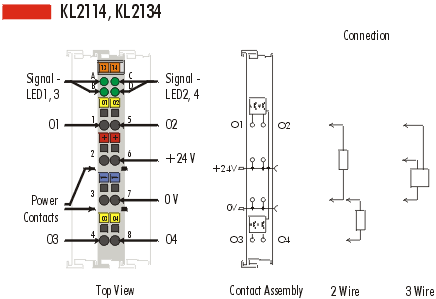

The KL2114 and KL2134 digital output terminals switch the binary control signals of the
control system to the process level in an electrically isolated fashion. The outputs are
short-circuit and overload protected. The KL2134 bus terminal is protected against
polarity swapping. The bus terminals contain four channels each, which indicate their
signal states with LEDs.
|
Technical data |
KL2114 | KL2134 |
|
Number of outputs |
4 | |
|
Rated load voltage |
24 V DC (20 V ... 29 V) | |
|
Load type |
resistive, inductive | |
|
Max. output current |
0.5 A | |
|
(per channel) |
(short-circuit- protected) |
|
|
Current consumption from K-Bus |
9 mA typ. | |
|
Leakage current |
25 mA typ. | |
|
Reverse voltage protection |
No | Yes |
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) | |
| Bit width in the process image | 4 O | |
| Configuration | no address or configuration setting | |
|
Weight approx. |
70 g | |
|
Operating temperature |
0°C ... +55°C | |
|
Storage temperature |
-25°C ... +85°C | |
|
Relative humidity |
95%, no condensation | |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 | |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 | |
|
Installation position |
any | |
|
Type of protection |
IP20 | |
