I/O-Modules
Fieldbus Terminals
4-Channel 24 V DC
Digital Output Terminal

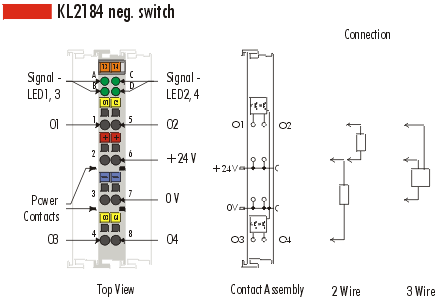

The KL2184 digital output terminal switches the binary control signals of the control
system to the process level in an electrically isolated fashion. The KL2184 variant has
four 0 V (earth) switching outputs and generates load currents with outputs that are
resistant to overload and short circuits. The bus terminal contains four channels , which
indicate their signal states with LEDs.
|
Technical data |
KL2184 |
|
Number of outputs |
4 |
|
Rated load voltage |
24 V DC (20 V ... 29 V) |
|
Load type |
resistive, inductive |
|
Max. output current |
0.5 mA |
|
(per channel) |
(short-circuit-protected) |
|
Current consumption from K-Bus |
9 mA typ. |
|
Leakage current |
30 mA typ. |
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) |
| Bit width in the process image | 4 O |
| Configuration | no address or configuration setting |
|
Weight approx. |
70 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
