I/O-Modules
Fieldbus Terminals
2-Channel 24 V DC
Digital Output Terminal

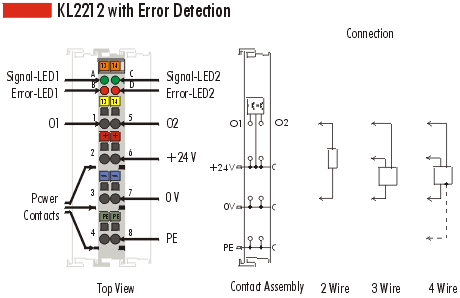

The KL2212 digital output terminal switches the binary control signals of the control
system in an electrically isolated fashion on to the process level. The outputs are
short-circuit and overload protected. A short-circuit or wire breakage is detected and the
terminal status is forwarded to the controller via the K-Bus. The bus terminal contains
two channels , which indicate their signal states and errors with LEDs.
|
Technical data |
KL2212 |
|
Number of outputs |
2 |
|
Rated load voltage |
24 V DC (20 V ... 29 V) |
|
Load type |
resistive, inductive |
|
Max. output current |
0.5 mA |
|
(per channel) |
(short-circuit-proof) |
|
Current consumption from K-Bus |
15 mA typ. |
|
Leakage current |
15 mA typ. |
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) |
| Bit width in the process image | 4 I / 4 O (2 O without meaning) |
|
Meaning of diagnosis bits (2 Bit per channel) |
00
no Error 10 short-circuit to GND 01 short-circuit to VCC 11 undervoltage |
| Configuration | no address or configuration setting |
|
Weight approx. |
60 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
