I/O-Modules
Fieldbus Terminals
2-Channel 24 V DC
Digital Output Terminal

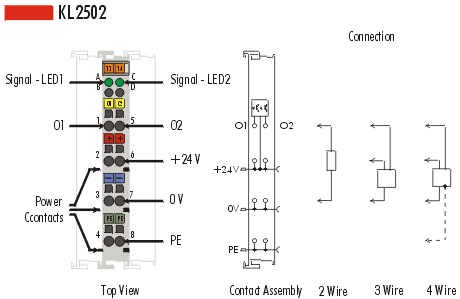

The KL2502 output terminal modulates the pulse width of a binary signal and outputs it as
a signal that is electrically isolated from the K-Bus. The pulse and pause ratio is
specified by a 16-bit value. The output stage is capable of withstanding overloads and
short-circuits. The bus terminals contain two channels, which indicate their signal states
with LEDs. The LEDs are clocked with the outputs and indicate the keying ratio by their
brightness.
|
Technical data |
KL2502 |
|
Number of outputs |
2 |
|
Rated load voltage |
24 V DC (20 V ... 29 V) |
|
Load type |
resistive, inductive |
|
Max. output current |
0.5 mA |
|
(per channel) |
(short-circuit-proof) |
| Fundamental frequency | 1 ... 20 kHz, 250 Hz default |
| Keying ratio | 0 ... 100% (Ton > 750 ns, Toff >500 ns ) |
| Resolution | max. 10 bits |
| Electrical isolation | 500 Vrms (K-Bus / field voltage) |
|
Current consumption from K-Bus |
9 mA typ. |
|
Leakage current |
30 mA typ. |
| Bit width in the process image | 48 I/O: 2 x 16 bits data, 2 x 8 bits control/status |
| Configuration | no address settings, configurations via bus coupler or control system |
|
Weight approx. |
50 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
