SSI Sensor Interface
bidirectional
The BI-SSI interface terminal KL5051 serves for the connection of the digital servo
amplifier digifas 7100/7200 made by Seidel. The transmitter is supplied via the SSI -
interface. The interface consists of two logical channels. The positioning of the drive is
effected via the first channel, and via the second channel releases are set,
parameterising data transmitted and status information and parameter values read. The 5 V
DC supply voltage can be created with the net power pack terminal KL9505 and fed into the
power contacts.
|
Technical data |
KL5051 |
|

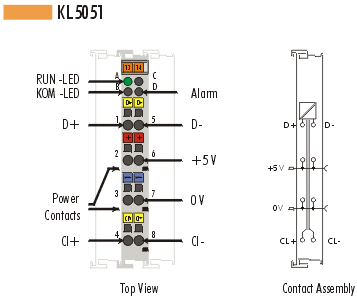

Sensor connection |
binary input: D+, D-; binary output: Cl+, Cl- |
|
Power supply |
5 V DC via power contacts (KL9505) |
|
Current consumption |
typically 85 mA without sensor |
|
Sensor supply |
5 V DC |
|
Data transfer rate |
1 MHz |
| Data direction | bidirectional |
| Signal output | difference signal (RS485) |
| Signal input | difference signal (RS485) |
|
Current consumption from K-Bus |
75 mA typ. |
|
Electrical isolation |
500 Vrms (K-Bus / field voltage) |
|
Bit width in the process image |
I/O: 2 x 16 bits data, 2 x 8 bits control/status |
|
Configuration |
no address or configuration settings |
|
Weight approx. |
80 g |
|
Operating temperature |
0°C ... +55°C |
|
Storage temperature |
-25°C ... +85°C |
|
Relative humidity |
95%, no condensation |
|
Vibrations/Shock resistance |
conforms to IEC 68-2-6 / IEC 68-2-27 |
|
EMC resistance burst / ESD |
conforms to EN 50082 (ESD, Burst) / EN 50081 |
|
Installation position |
any |
|
Type of protection |
IP20 |
