I/O-Modules
Fieldbus Terminals
Incremental Encoder Interface

Product Description

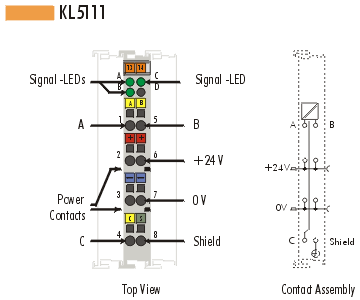

The KL5111 terminal is an interface for the direct connection of any 24 V incremental
encoders. A 16-bit counter with quadrature decoder and a 16-bit latch for the zero pulse
can be read, set or activated. The counter status is transferred rapidly and insusceptible
to faults to a PC, a PLC or a CNC via the field bus. A period measurement with a
resolution of 200 ns is possible.

Technical data	KL5111
Sensor connection	A, B, C
Sensor operating voltage	24 V DC
Counter	16 bits binary
Cut off frequency	1 MHz
Quadrature decoder	4 time evaluation
Zero pulse latch	16 bits
Commands	read, set, activate
Supply voltage	24 V DC (20 V ... 29 V))
Current consumption of Power contacts	0.1 A (without sensor load current)
Bit width in the process image	I/O: 2 x 16 bits data, 1 x 8 bits control/status
Current consumption from K-Bus	50 mA
Weight approx.	85 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibrations/Shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance burst / ESD	conforms to EN 50082 (ESD, Burst) / EN 50081
Installation position	any
Type of protection	IP20
