Bus Function Terminals KL9xxx

Product Description

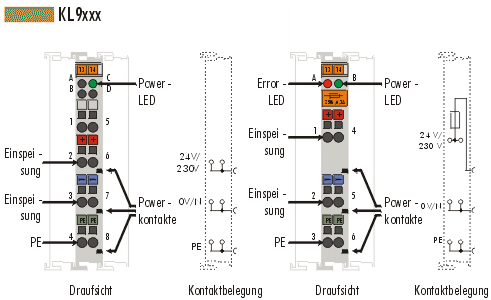

The supply input terminals can be placed anywhere between the input/output terminals in order to create a further potential group or, in the event of a high current load, to supply the terminals following on the right with higher currents. The supply input terminals can be used for voltages up to 230V AC. The terminals with a diagnostics function report possible power failures or short-circuits to the controller.

Technical data	KL91xx	KL92xx
Power contact load	max. 10 A
Short-circuit resistance	Yes
Voltage	24 V DC or 230 V AC depending on the type
Weight approx.	45 g	65 g
Operating temperature	0°C ... +55°C
Storage temperature	-25°C ... +85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to IEC 68-2-6 / IEC 68-2-27
EMC resistance Burst / ESD	conforms to EN 61000-4-4 / EN 61000-4-2, limit EN 50082-2-4
Installation position	any
Type of protection	IP20

Designation	KL9190	KL9100	KL9110	KL9150	KL9160
Rated voltage	any	24 VDC	24 VDC	230 VAC	230 VAC
Integrated fine-wire fuse	-	-	-	-	-
Diagnostics	-	-	yes	-	yes
Power LED	-	green	green	green	green
Defect LED	-	-	-	-	-
Signal to T-Bus	-	-	yes	-	yes
PE contact	yes	yes	yes	yes	yes
Shielding connection	-	-	-	-	-
Renewed infeed	yes	yes	yes	yes	yes
Additional possibility of connection to Power contact	1	1	1	1	1
T-Bus looped through	yes	yes	yes	yes	yes
Logical width in the Process image	0	0	2	0	2
Connection to top hat rail	-	-	-	-	-
Electrical isolation	yes	yes	yes	yes	yes
Housing width in mm	12	12	12	12	12
Side by side mounting on bus terminals with Power contacts	yes	yes	yes	yes	yes
Side by side mounting on bus terminals without Power contacts	yes	yes	yes	yes	yes

Designation	KL9200 (KL9290)	KL9210	KL9250	KL9260
Rated voltage	24 VDC (any)	24 VDC	230 VAC	230 VAC
Integrated fine-wire fuse	... 6.3 A	... 6.3 A	... 6.3 A	... 6.3 A
Diagnostics	-	yes	-	yes
Power LED	green (-)	green	green	green
Defect LED	red (-)	red	red	red
Signal to T-Bus	-	yes	-	yes
PE contact	yes	yes	yes	yes
Shielding connection	-	-	-	-
Renewed infeed	yes	yes	yes	yes
Additional possibility of connection to Power contact	1	1	1	1
T-Bus looped through	yes	yes	yes	yes
Logical width in the Process image	0	2	0	2
Connection to top hat rail	-	-	-	-
Electrical isolation	yes	yes	yes	yes
Housing width in mm	12	12	12	12
Side by side mounting on bus terminals with Power contacts	yes	yes	yes	yes
Side by side mounting on bus terminals without Power contacts	yes	yes	yes	yes

Designation	KL9180	KL9185	KL9195	KL9010
Rated voltage	any	any	any	any
Integrated fine-wire fuse	-	-	-	-
Diagnostics	-	-	-	-
Power LED	-	-	-	-
Defect LED	-	-	-	-
Signal to T-Bus	-	-	-	-
PE contact	yes	-	-	-
Shielding connection	-	-	2	-
Renewed infeed	-	-	-	-
Additional possibility of connection to Power contact	2	4	1	-
T-Bus looped through	yes	yes	yes	-
Logical width in the Process image	0	0	0	0
Connection to top hat rail	-	-	Shield terminal	-
Electrical isolation	-	-	-	-
Housing width in mm	12	12	12	12
Side by side mounting on bus terminals with Power contacts	yes	Only 2 power contacts	Only 2 power contacts	yes
Side by side mounting on bus terminals without Power contacts	-	-	-	yes

The incoming feeder terminals enable the creation of diverse potential groups with any chosen voltages (KL9190) or with the standard 24V DC or 230V AC voltages (please enquire about 120V). The supply input terminals are available with and without fine-wire fuses. To monitor the supply voltage, the terminals featuring the diagnostic function signal the status of the incoming feeder terminal to the bus coupler by means of two input bits. This enables a check of the decentralised peripheral voltage via the field bus with the controller.

By means of the KL9180, KL9185 and KL9195 bus terminals, the supply voltage can be tapped multiply via spring force terminals. These bus terminals dispense with the need for the use of additional modular terminal blocks on the terminal strip.

The connection of shields can be handled by the KL9195 bus terminal. The KL9195 connects the spring force contacts directly to the tophat rail and is capable of optimally dissipating irradiated electromagnetic interference. The two Power contacts are looped through by the KL9195 and permit the connection of two wires each.

The KL9010 bus end terminal is needed for the exchange of data between the bus coupler and the bus terminals. Each module must be terminated on the right with one KL9010 bus end terminal. The bus end terminal has no further function or possibility of connection.
